Item Description
Wall-frame for Videowall
Quick mounting
Plug-in coupling with 4 adjustable rings
Vertical and horizontal micro-regulation

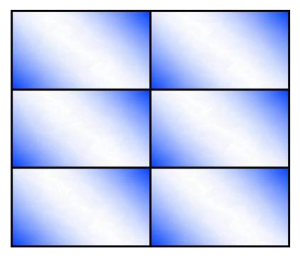

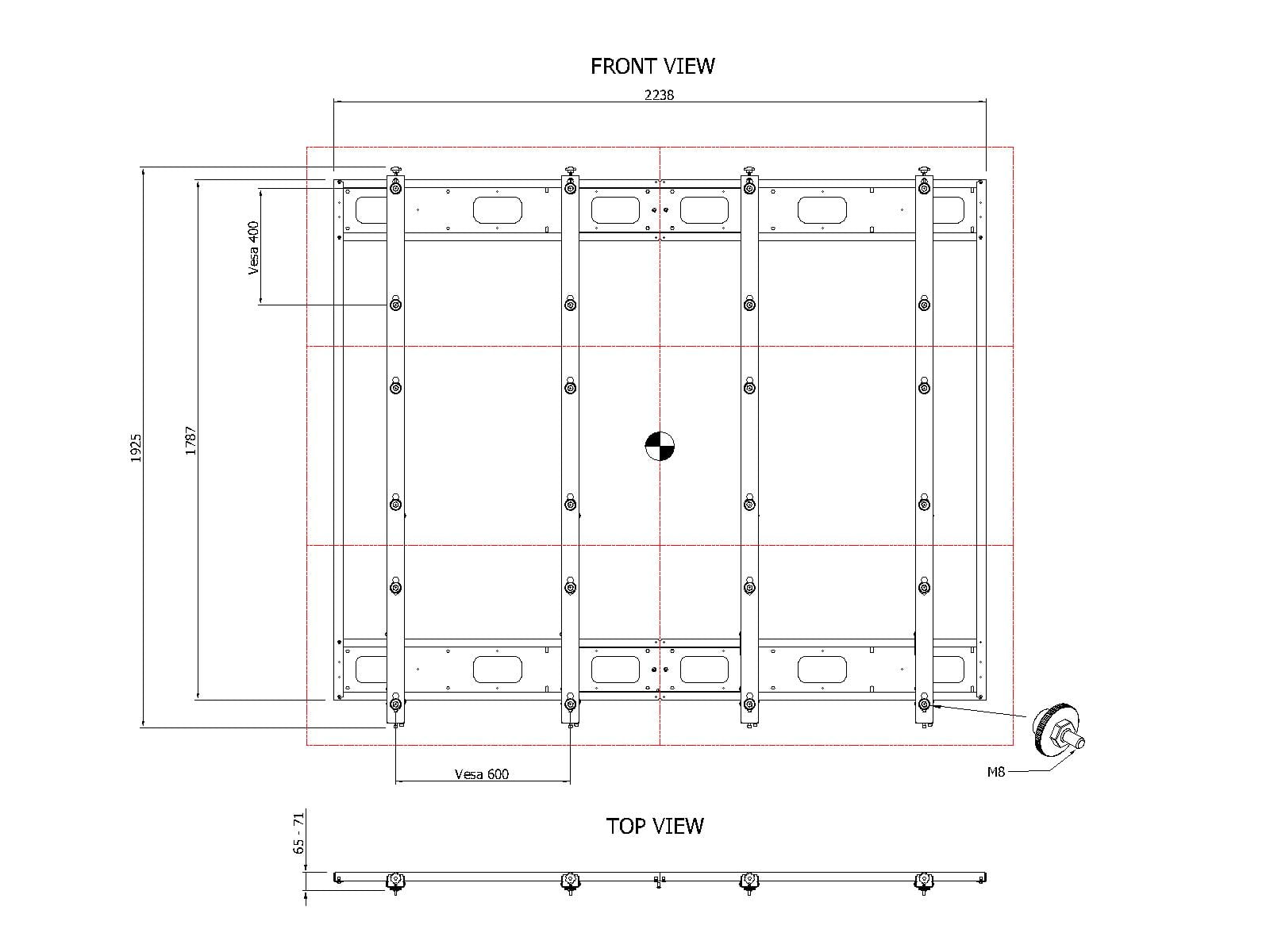

5545 VIDEOWALL (WALLMOUNT) 2X3 – 55”

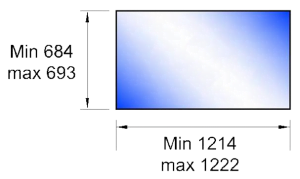

- 6 Screens 2X3 from 55” min 684×1214 mm / Max 693×1222 mm
- Frame entirely made of galvanized steel sheets 2 mm
- Assembly of screens with adjustable M8 snap-on rings
- Vertical micrometric adjustment of each column with 2 knobs
- Vertical micrometric adjustment of the lower screens with 2 screws
- Horizontal micrometric adjustment of the screens with 4 rings for each screen
- VESA 400X400 and 600X400
- Weight max load 50 kg for each screen
